High Gain Spring Base Omnidirectional Dipole Oscillator Dual-Band Antenna
This omnidirectional dipole dual-band antenna features manually modulated frequency bands, supports full-band customization, and is equipped with a spring and suction cup at the bottom to cushion vibrations. It can be used in conjunction with vehicle-mounted drone countermeasure equipment. It is an essential transmission antenna for drone countermeasure equipment, low-altitude security systems, and portable jamming devices.
Shen Zhen Texin Electronics Co., Ltd has specialized in anti-drone devices, accessories, and antennas for more than 10 years. Product quality is guaranteed.
Product Specifications
| Parameter |
Value |
Unit |
| Frequency |
100-500MHz 700-3000MHz (customizable) |
MHz |
| Output |
50W/100W (customizable) |
- |
| Gain |
8-10 |
dBi |
| Flatness |
±3 |
dBm |
| Work Voltage |
50Ω |
dB |
| Input Connector Type |
N |
- |
| Lightning Protection |
DC Ground |
dB |
| Cable Type |
RG316 |
- |
| Output Connector VSWR |
≤2 (No power and VNA test) |
- |
| Outer Shell Size |
1210 |
mm |
| Material |
Aluminum |
- |
| Weight |
2.05 |
kg |
| Work Temperature |
-20~+70 |
℃ |
| Installation |
Machine installation |
- |
| Vibration Requirement |
Car load OK |
- |
Available Options
Wattage: 10W, 20W, 30W, 40W, 50W
Frequency Bands: 100MHz, 200MHz, 300MHz, 1.2GHz, 2.4GHz, 5.2GHz, 5.8GHz
Product Features
- Full-band, all-around jamming capability effectively counters UAV image transmission signals (2.4GHz, 5.2GHz, 5.8GHz) and GNSS navigation frequencies
- The spring structure can buffer vibrations and resist minor impacts, making it suitable for in-vehicle/portable devices
- Two frequency bands integrated into one antenna, stable output and high cost performance
- The shell is made of copper, which can withstand high-intensity impact
- Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle
- The antenna root is reinforced, and the connection is more reliable and durable
Product Images
Product Application
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.
Payment term?
T/T, (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.
How to proceed with an order?
A. Let us know your requirements and product application
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What to do if I receive defective products?
Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.

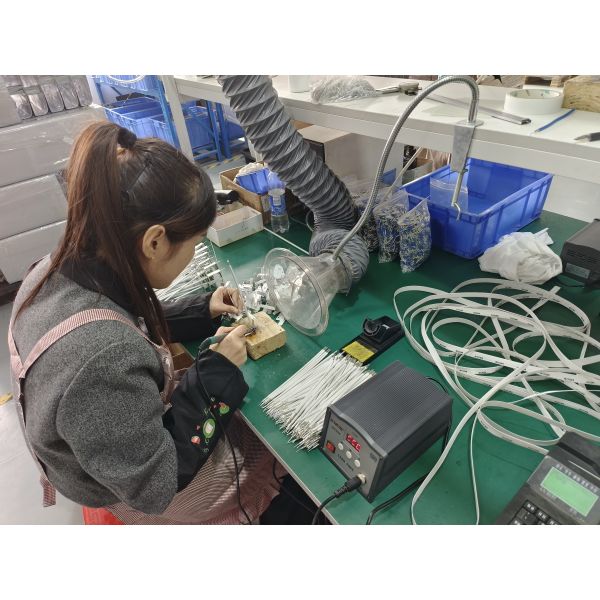

Factory Pictures
